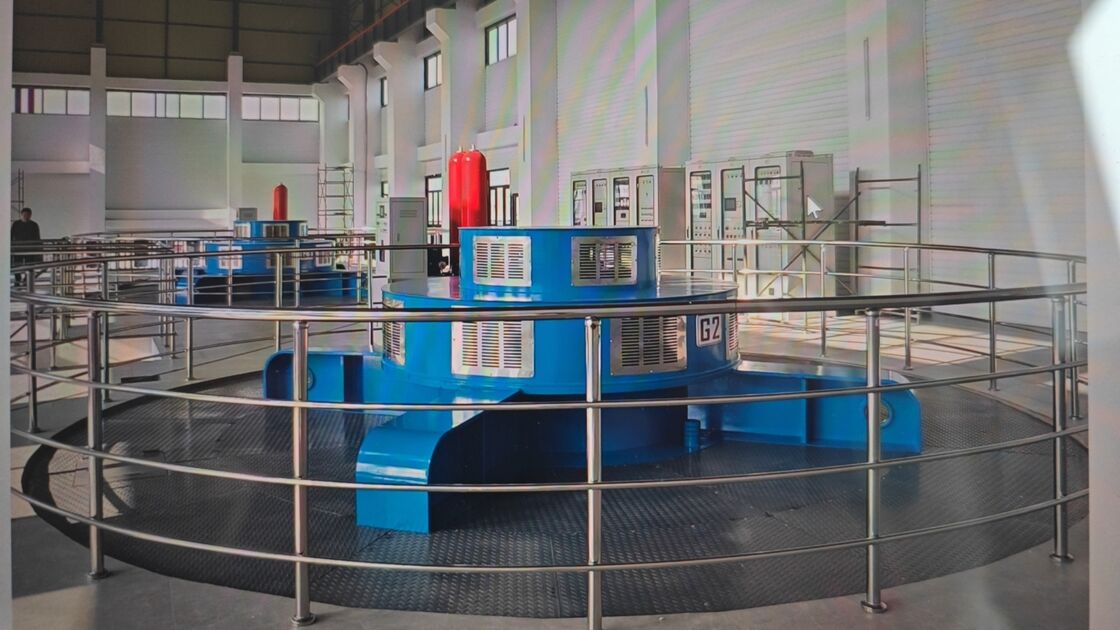

Kaplan Hydro Turbine with Stainless Steel Blades and 6-20KV Generator Voltage for Over 30 Years Life Time
Detalhes do produto:
| Marca: | Wawushan |
| Certificação: | ISO9001 |
| Número do modelo: | ZDJ50233 |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 1 |
|---|---|
| Preço: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Informação detalhada |
|||
| Padrão de layout: | Vertical | Tipo de gerador: | Gerador síncrono |
|---|---|---|---|
| entrada de água: | Vertical | Material: | Lâmina de aço inoxidável |
| Faixa de velocidade: | Normalmente 100 a 300 RPM | Ângulo da lâmina do corredor: | 15° - 30° |
| Cabeça classificada: | 2-200m | Vida: | mais de 30 anos |
| Destacar: | Stainless Steel Blade Kaplan Hydro Turbine,6-20KV Generator Voltage Hydraulic Energy Turbine,Over 30 Years Life Time Hydro Power Turbine |
||
Descrição de produto
Kaplan Hydro Turbine - 6-20KV Generator Voltage
A highly efficient hydraulic energy turbine designed to maximize hydroelectric energy efficiency by converting flowing water into valuable electrical energy. Ideal for low to medium water heads and high flow rates where traditional turbines underperform.
Key Features
- Product Name: Kaplan Hydro Turbine
- Type: Hydraulic Power Turbine
- Life Time: Over 30 Years
- Spiral Case Material: Carbon Steel
- Rated Head Range: 2-200m
- Speed Range: 100 to 300 RPM
- Runner Type: Fixed Blades / Regulator Blades
- Generator Voltage: 6-20KV
- Rated Power: 2-50MW
Technical Specifications
| Parameter | Specification |
|---|---|
| Water Inlet | Vertical |
| Layout Pattern | Vertical |
| Life Time | Over 30 Years |
| Generator Voltage | 6-20KV |
| Spiral Case | Carbon Steel |
| Material | Stainless Steel Blade |
| Rated Power | 2-50MW |
| Rated Head | 2-200m |
| Runner Type | Fixed Blades/Regulator Blades |
| Blade Material | Stainless Steel With CNC |
Advanced Engineering Design
The turbine features a carbon steel spiral case for exceptional strength and corrosion resistance, along with stainless steel blades precision-machined using CNC technology for optimal aerodynamic profiles. The adjustable runner blades maintain peak efficiency under varying water flow conditions.
Applications
Ideal for small to medium hydroelectric power plants, river diversion projects, run-of-river power plants, and irrigation canal power generation. Suitable for diverse geographical locations and water source conditions.
Customization & Support
Available with Fixed Blades or Regulator Blades configuration. Comprehensive technical support includes installation guidance, operational training, maintenance schedules, troubleshooting, and performance optimization services.
Model ZDJ502 Specifications
Flow Capacity: 16.00 M³/s | Speed: 500r/min | ISO9001 Certified
Minimum Order: 1 unit | Price: $50,000 - $100,000 | Delivery: ~6 months
